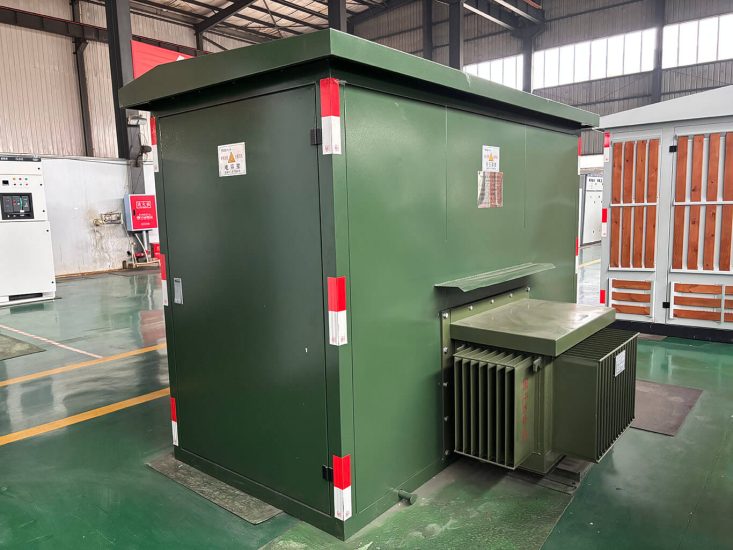

The “kiosk-style” substation does not imply that its enclosure is physically shaped like a pavilion; rather, the term is used to highlight its characteristics of overall compactness and minimal footprint. This type of outdoor, integrated substation integrates medium-voltage switchgear, low-voltage distribution equipment, and associated auxiliary devices within a single enclosed housing. The transformer, however, is…

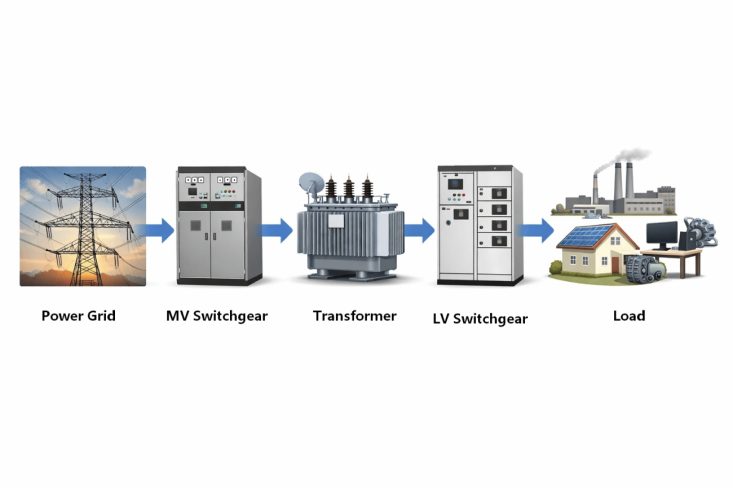

The containerized substation functions as a self-contained, integrated power conversion unit, operating via a straightforward process. Upon connection to the utility grid, incoming power first passes through the medium-voltage switchgear housed within the container. This switchgear is responsible for connecting and disconnecting circuits; additionally, it incorporates fault protection capabilities to facilitate the preliminary control and…
Nowadays, power systems are paying more and more attention to modularization and fast deployment. containerized substations, because they are easy to use, easy to install, and take up little space, are being used more and more in places like industrial parks, new energy power stations, mining areas, and overseas projects. But each project has different…

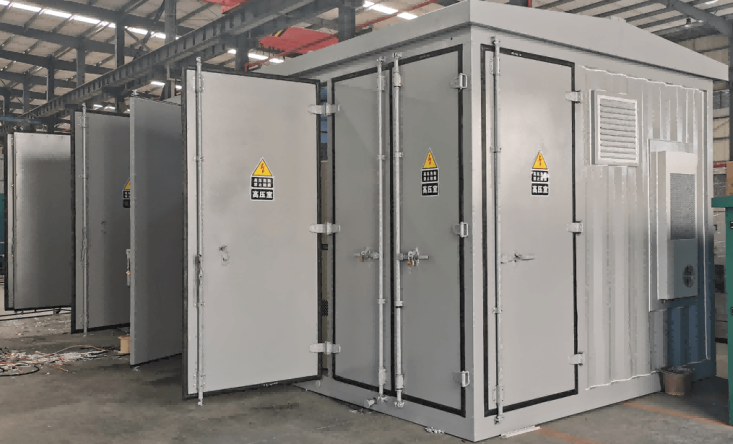

A containerized substation is a complete set of power distribution equipment that arranges medium-voltage power distribution equipment, power transformers, low-voltage power distribution equipment, as well as auxiliary devices such as control, protection, metering, reactive power compensation, etc., reasonably and compactly in a fully enclosed steel box that has been treated with anti-corrosion and thermal insulation…
An air circuit breaker detects faults, trips automatically, extinguishes arcs, and safely interrupts circuits to protect equipment. Under normal operating conditions, the contacts remain closed, allowing current to flow smoothly through the air circuit breaker and continuously supply power to the load. When circuit faults—such as overloads or short circuits—occur, causing the current or voltage…
Selecting an air circuit breaker doesn’t require complex calculations; simply focus on the following nine points and align them with the specific requirements of your project to ensure you make the right choice. 1. Determine the Application First, clearly identify where this circuit breaker will be installed: Will it serve as the main switch controlling…
An Air circuit breaker typically utilizes a steel frame as its primary structural support, serving to securely and cohesively mount all internal components; this design results in a compact yet robust structure. As a low-voltage switching device, the air circuit breaker employs air as both its arc-extinguishing and insulating medium and is primarily deployed within…
The MCCB is like a precisely designed machine, with each component performing its specific function and working together to build a safety barrier for the circuit. Understanding its basic components makes it easy to understand how it achieves precise protection. 1. Molded Case Tightly encases all internal components, isolating them from external dust, moisture, and…
When selecting a molded case circuit breaker (MCCB), you also cannot just look at one parameter. You need to combine the load of the whole power distribution system and the use environment to make a comprehensive judgment, so that the main lines and high-power equipment can run more stably and truly provide safety protection. 1.…
A molded case circuit breaker (MCCB) is a low-voltage circuit breaker featuring an outer casing constructed from high-strength, flame-retardant plastic. The internal conductive components, operating mechanisms, and protective devices are entirely enclosed within this plastic housing, ensuring both safety and durability. Available in various frame sizes, these breakers correspond to different current ratings and breaking…
