Soft Starter Control Panels provide a controlled solution for motor starting, protecting equipment from the damaging effects of sudden high inrush currents. They ensure smooth acceleration and deceleration by managing voltage and torque, which extends equipment lifespan, reduces maintenance needs, and improves overall system reliability.
Our Soft Starter Control Panels Types

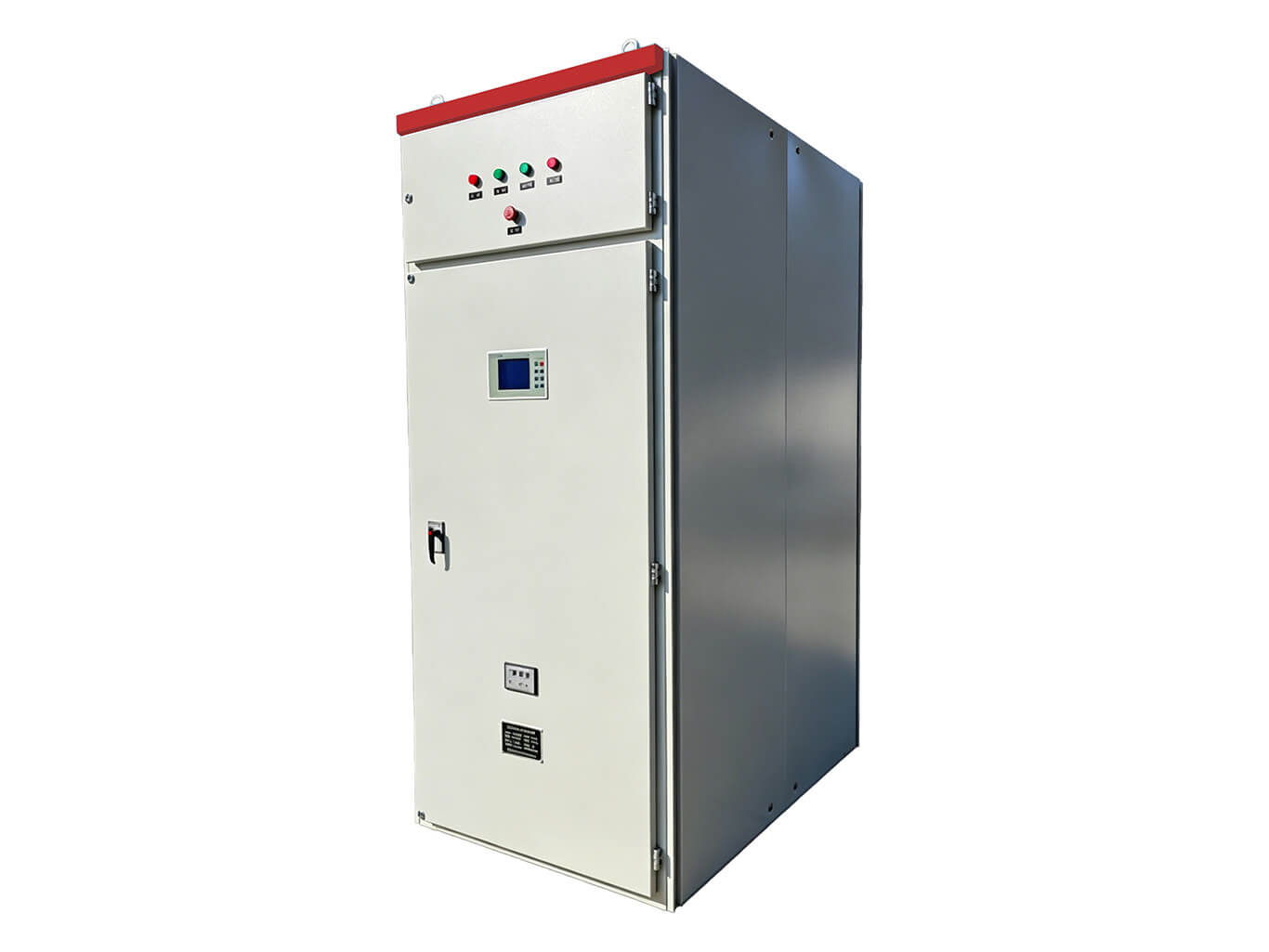

Soft Starter Conveyor Control Panels
Soft Starter Panel Design & Customization
We offer flexible and customized soft starter panel designs for different industrial motor control requirements.
Modular Panel Structure
Easy installation, maintenance, and future expansion.
Motor Application Customization
Designed for pumps, fans, compressors, conveyors, and crushers.
Control System Integration
- PLC integration
- SCADA compatibility
- Remote monitoring and control
Bypass Configuration Options
Internal or external bypass design for improved efficiency and reduced heat generation.
How to Choose the Right Soft Starter Panel
Selecting the correct soft starter panel ensures optimal motor performance and system protection.
- Motor Power Rating
Select based on motor kW/HP requirements.
- Load Type
Different loads (pump, fan, compressor) require different starting profiles.
- Starting Frequency
High-frequency starting requires heavy-duty design.
- Control Requirements
Basic control vs intelligent PLC-based automation.
- Installation Environment
Industrial, outdoor, high-temperature, or dusty environments.
- Applications of Soft Starter Panels
Soft starter panels are widely used in industries with large motor-driven systems.
- Water Treatment Plants
Pump control for water supply and wastewater systems.
- HVAC Systems
Fans and chillers in commercial buildings.
- Industrial Manufacturing
Conveyors, mixers, crushers, and production machinery.
- Mining and Heavy Industry
High-power motor control for demanding environments.
- Oil and Gas Industry
Reliable motor starting for pumps and compressors.
Why Choose Our Soft Starter Control Panels
Years of Manufacturing Experience
Custom Engineering
In-house Engineering Team
Strict Quality Control
Global Export Projects
Fast Lead Time
Technical Specifications of Soft Starter Panels
Our soft starter panels are engineered for stable motor performance, high reliability, and industrial-grade protection.
Electrical Ratings
- Rated voltage: up to 690V
- Rated power: suitable for 7.5kW to 1000kW+ motors
- Frequency: 50/60Hz
Starting Control Features
- Adjustable start and stop time
- Voltage ramp control
- Current limiting control
- Torque control
Protection Functions
- Overload protection
- Phase loss protection
- Overcurrent protection
- Motor overheating protection
Applications of Soft Starter Control Panels
Project References & Global Applications
“The soft starter control panels helped us significantly reduce motor inrush current during startup. Operation is smooth and reliable, and the overall system stability has improved noticeably.”
“We selected Wondon for their experience with soft starter panels, and the results met our expectations. The panels were well-built, easy to commission, and performed consistently under heavy loads.”
“The customized soft starter control panels were perfectly matched to our pump systems. Start-up stress was reduced, maintenance costs decreased, and the team provided excellent technical guidance.”
FAQs about Soft Starter Control Panels
1. What is a soft starter control panel?
A soft starter control panel is an electrical enclosure designed to house a soft starter and associated components to control the smooth starting and stopping of electric motors by gradually increasing and decreasing voltage.
2. What are the main components of a soft starter control panel?
A typical soft starter control panel includes a soft starter unit, circuit breakers or fuses, contactors, overload relays, bypass contactors, control switches, and protection and monitoring devices.
3. What are the advantages of using a soft starter control panel?
Soft starter control panels reduce inrush current, minimize mechanical stress on motors and driven equipment, extend equipment life, and improve system reliability during motor startup.
4. What applications are soft starter control panels commonly used in?
They are commonly used in pumps, compressors, fans, conveyors, crushers, and other motor-driven systems where smooth starting and stopping are required.
5. What is the difference between a soft starter and a VFD control panel?
A soft starter controls motor voltage during startup and shutdown only, while a VFD control panel controls motor speed continuously during operation.
