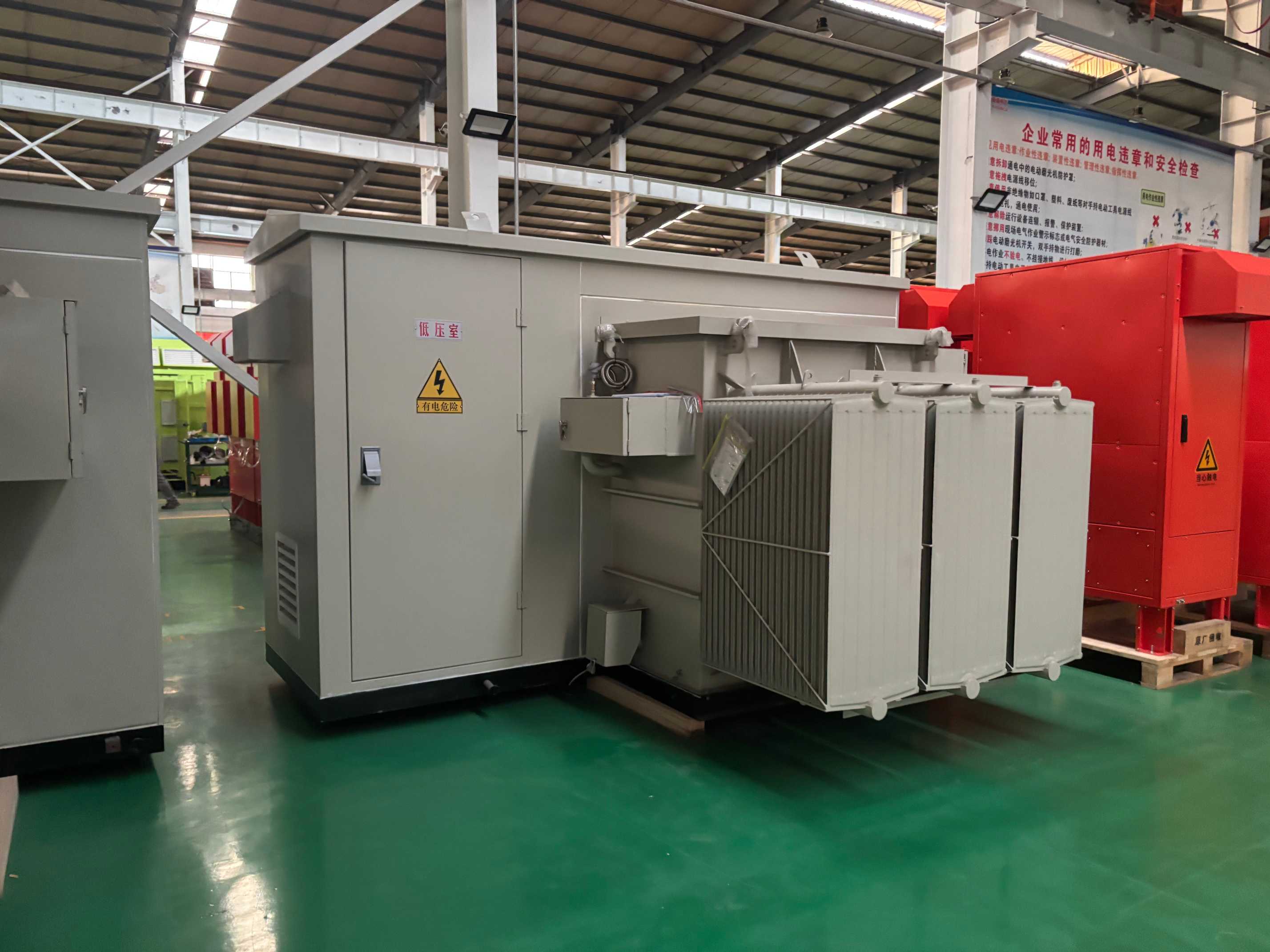

Kiosk Substation is a compact, prefabricated substation that typically integrates a transformer, medium-voltage switchgear, low-voltage distribution, and protection & control systems within a small steel or reinforced concrete enclosure. It is primarily used for medium- and low-voltage distribution in urban areas, residential communities, or industrial parks. With its small footprint and easy installation, a kiosk substation can be quickly deployed and put into operation.
Our Kiosk Substations Types

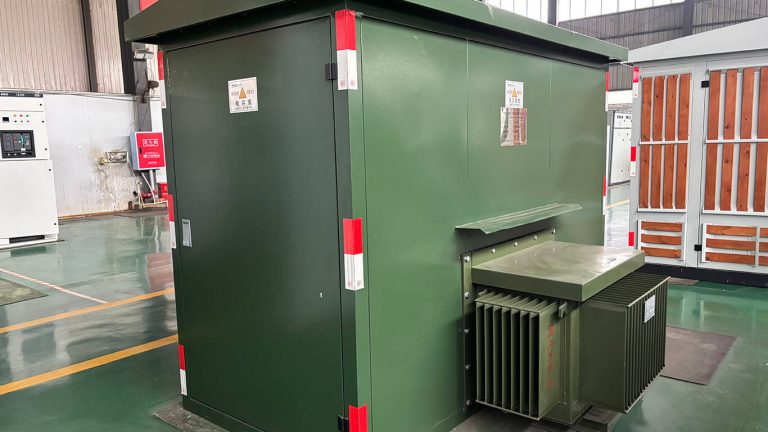

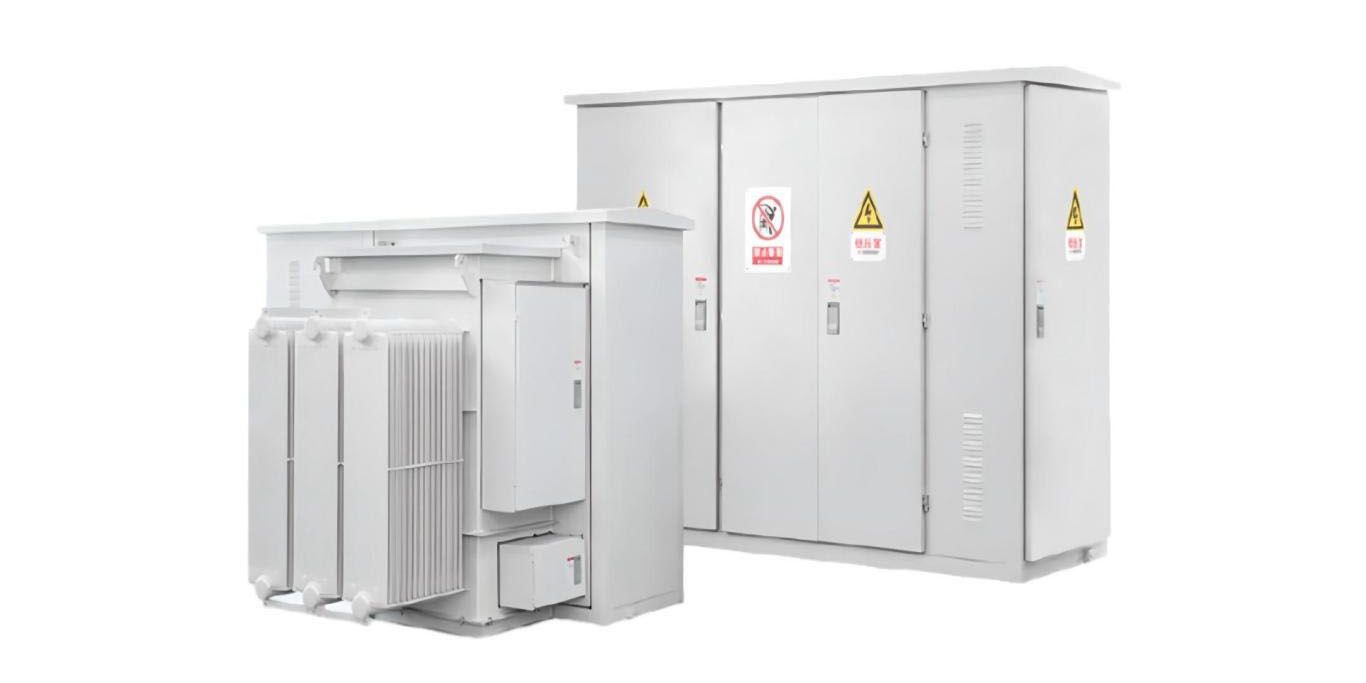

Outdoor Kiosk Substation
Kiosk Substation Design & Structure
Kiosk substations are designed for durability, safety, and ease of installation.
Fully Enclosed Metal Housing
Weatherproof and corrosion-resistant enclosure for outdoor use.
Modular Internal Layout
Optimized arrangement of transformer and switchgear for safety and efficiency.
Ventilation & Cooling System
Natural or forced air cooling to ensure stable operation.
Security Protection Design
- Anti-vandal structure
- Lockable doors
- IP-rated protection
How to Choose the Right Kiosk Substation
Selecting the right configuration depends on system requirements and environment.
- Voltage Level Selection
Determine MV/LV system requirements.
- Power Capacity
Select based on load demand and future expansion needs.
- Installation Environment
Urban streets, industrial zones, residential areas, or remote sites.
- Protection Level Requirement
Choose IP rating based on environmental conditions.
- Switchgear Configuration
RMU, AIS, or customized switchgear systems.
Why Choose Our Kiosk Substations
Years of Manufacturing Experience
Custom Engineering
In-house Engineering Team
Strict Quality Control
Global Export Projects
Fast Lead Time
Technical Specifications of Kiosk Substations
Our kiosk substations are engineered for safety, durability, and stable performance in outdoor environments.

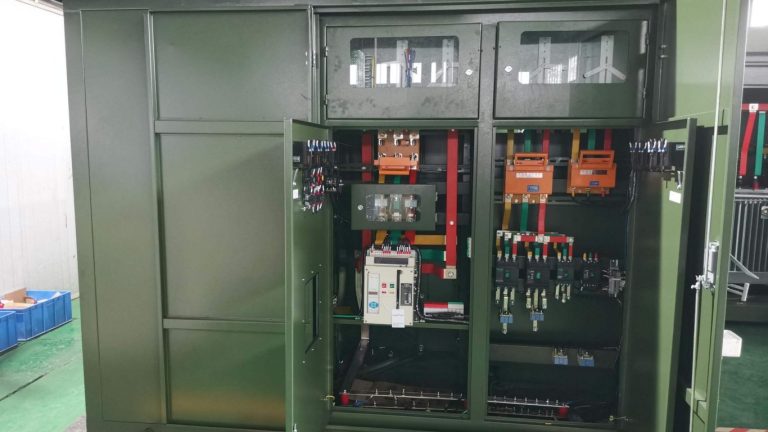

Integrated Electrical System
- Power transformer
- MV switchgear

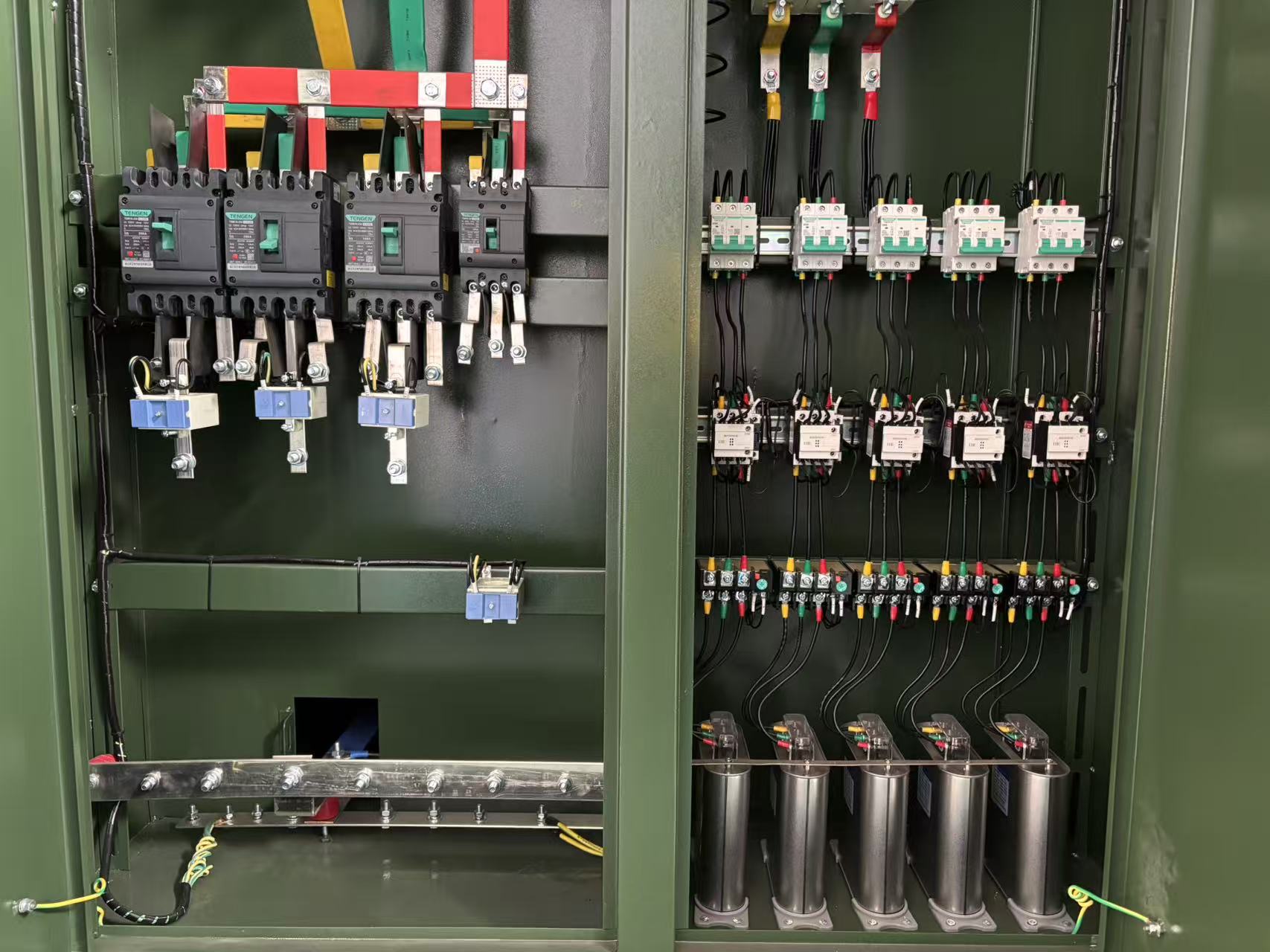

- LV switchgear
- Protection and control system
Electrical Ratings
- Voltage range: up to 36kV (customizable)
- Transformer capacity: up to 5000kVA+
- Frequency: 50/60Hz
Protection & Safety Design
- Short circuit protection
- Overload protection
- Arc fault protection
- Temperature monitoring system

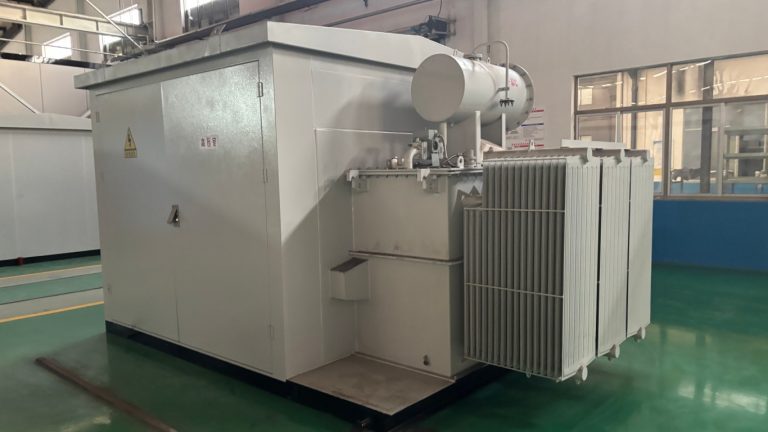

Applications of Kiosk Substations
Project References & Global Applications
“The kiosk substation from Wondon was delivered on time and integrated seamlessly into our urban project. Installation was quick, and the system has been running reliably ever since.”
“We chose a kiosk substation for its compact design and safety features. It fit perfectly within our limited site space and meets all regulatory standards.”
“The pre-assembled kiosk substation reduced on-site construction time significantly. Most of the assembly was done in the factory, making installation hassle-free.”
FAQs about Kiosk Substations
1. What is a kiosk substation?
A kiosk substation is a compact, integrated substation that houses high-voltage switchgear, transformer, low-voltage distribution, and protection/control systems in a small steel or concrete enclosure, suitable for urban and outdoor deployment.
2. What are the main components of a kiosk substation?
Medium voltage switchgear, dry-type or oil-immersed transformer, low voltage distribution cabinet, protection and automation system, and metering/monitoring/alarm devices.
3. What are the advantages of kiosk substations?
Compact footprint, factory prefabricated for short installation time, high reliability and easy maintenance, aesthetically suitable for urban environments, suitable for indoor or outdoor installation.
4. What maintenance is required for kiosk substations?
Regularly inspect switchgear and transformers, clean enclosure and interior, test protection and monitoring systems, and check grounding and insulation.
5. Can kiosk substations be quickly commissioned?
Yes. Factory prefabrication reduces on-site work to foundation, wiring, and grounding, significantly shortening commissioning time.
