The low voltage switchgear is a complete low voltage power distribution assembly consisting of circuit breakers, isolating switches, contractors, busbars, and integrated protection and control units. Its primary function is to safely connect, disconnect, and isolate electrical circuits under both normal operating conditions and fault scenarios, ensuring stable system operation while effectively protecting equipment and personnel.
Our Low Voltage Switchgear Types
Wondon provides a full range of low voltage switchgear solutions designed for different electrical distribution requirements and project conditions.

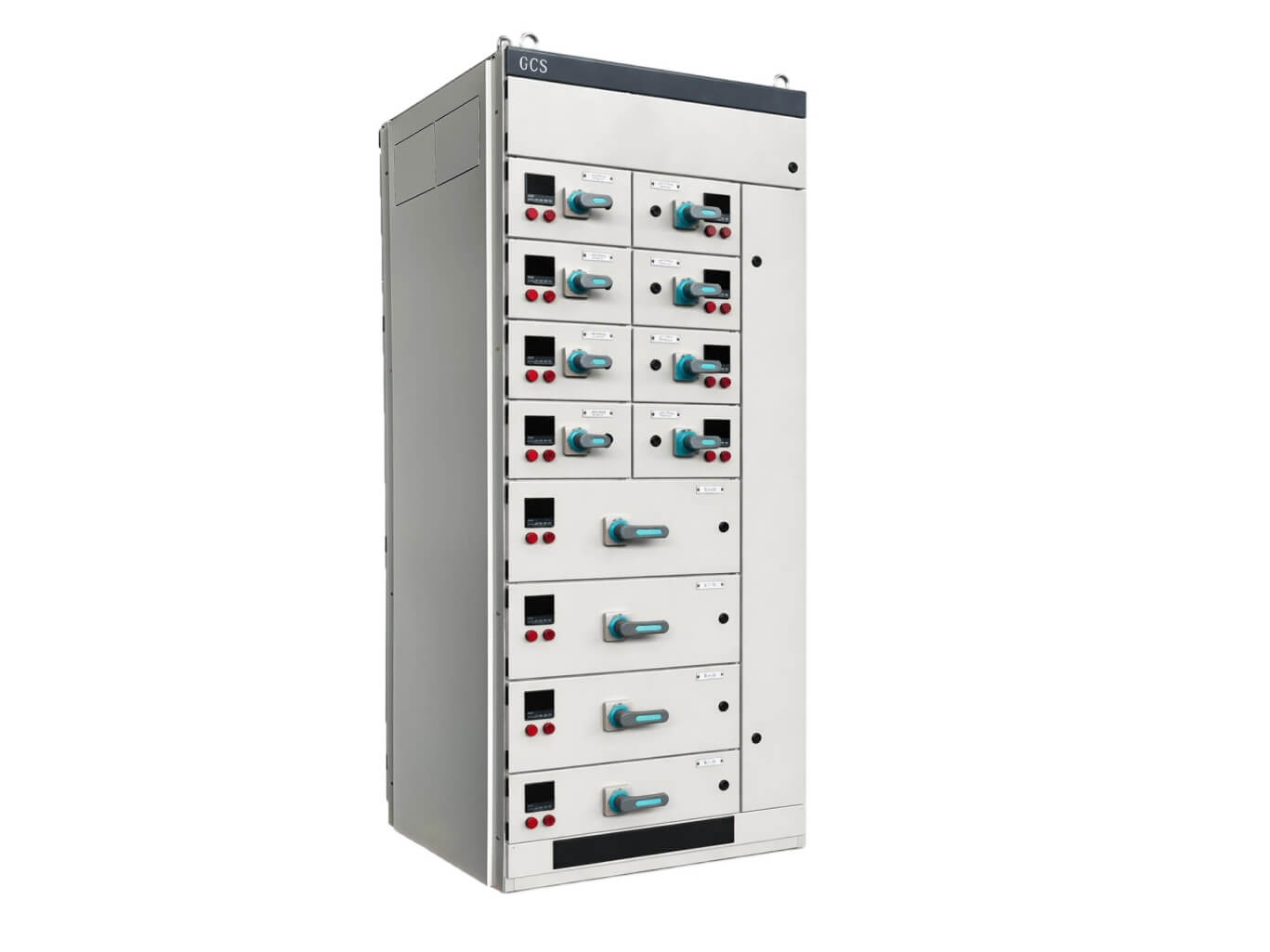

Withdrawable Low Voltage Switchgear

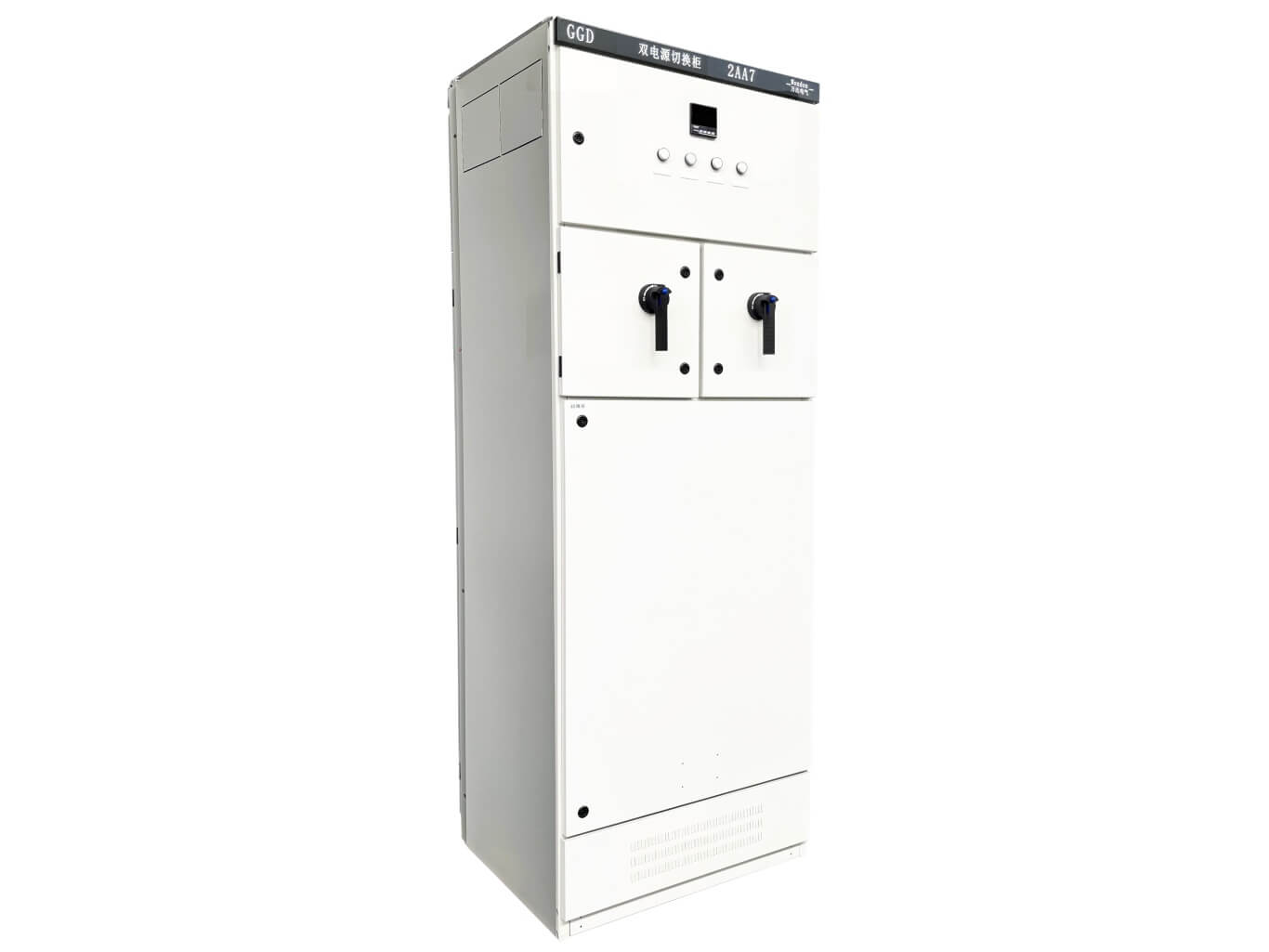

Low Voltage ATS Panels

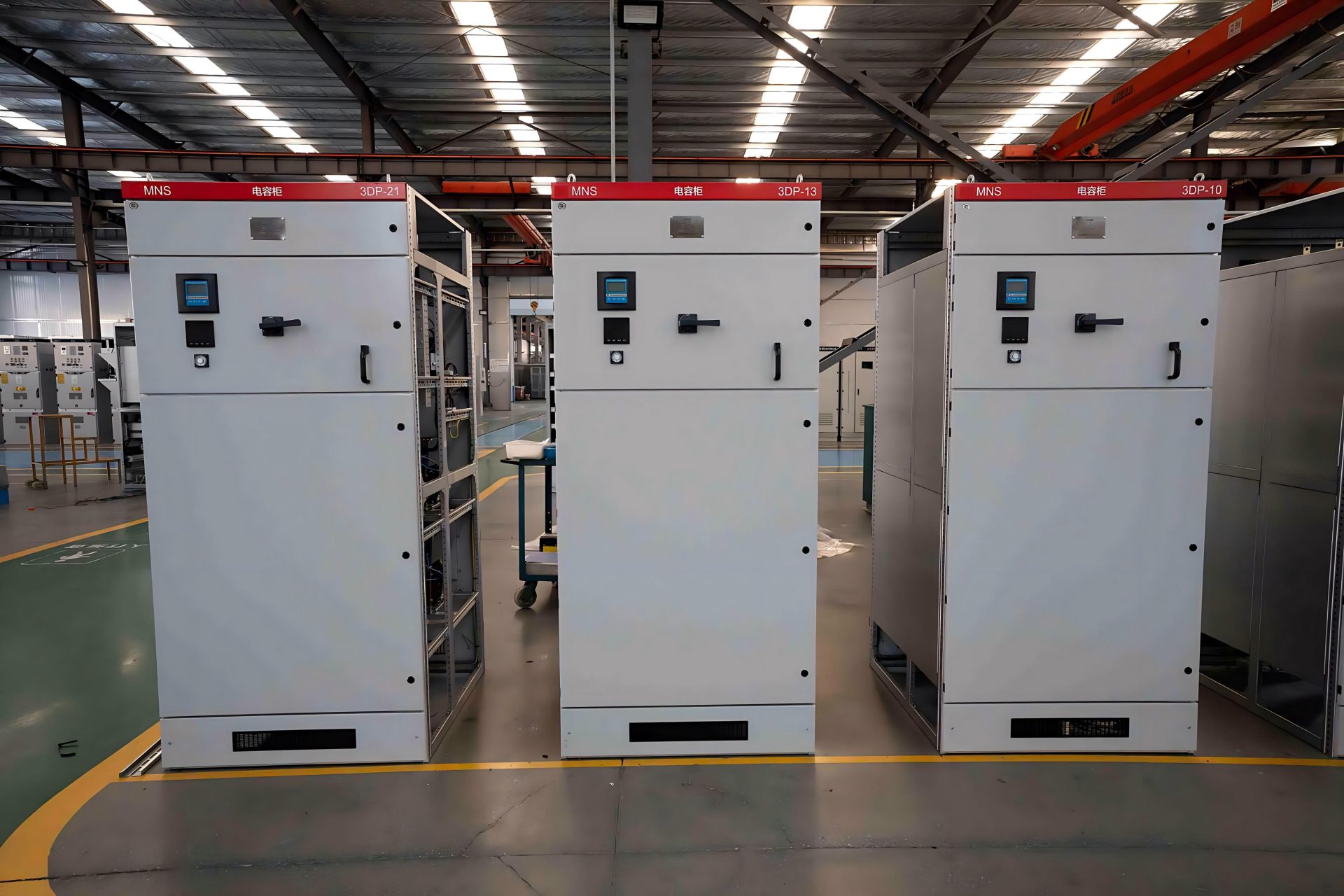

Low Voltage Capacitor Bank Panels

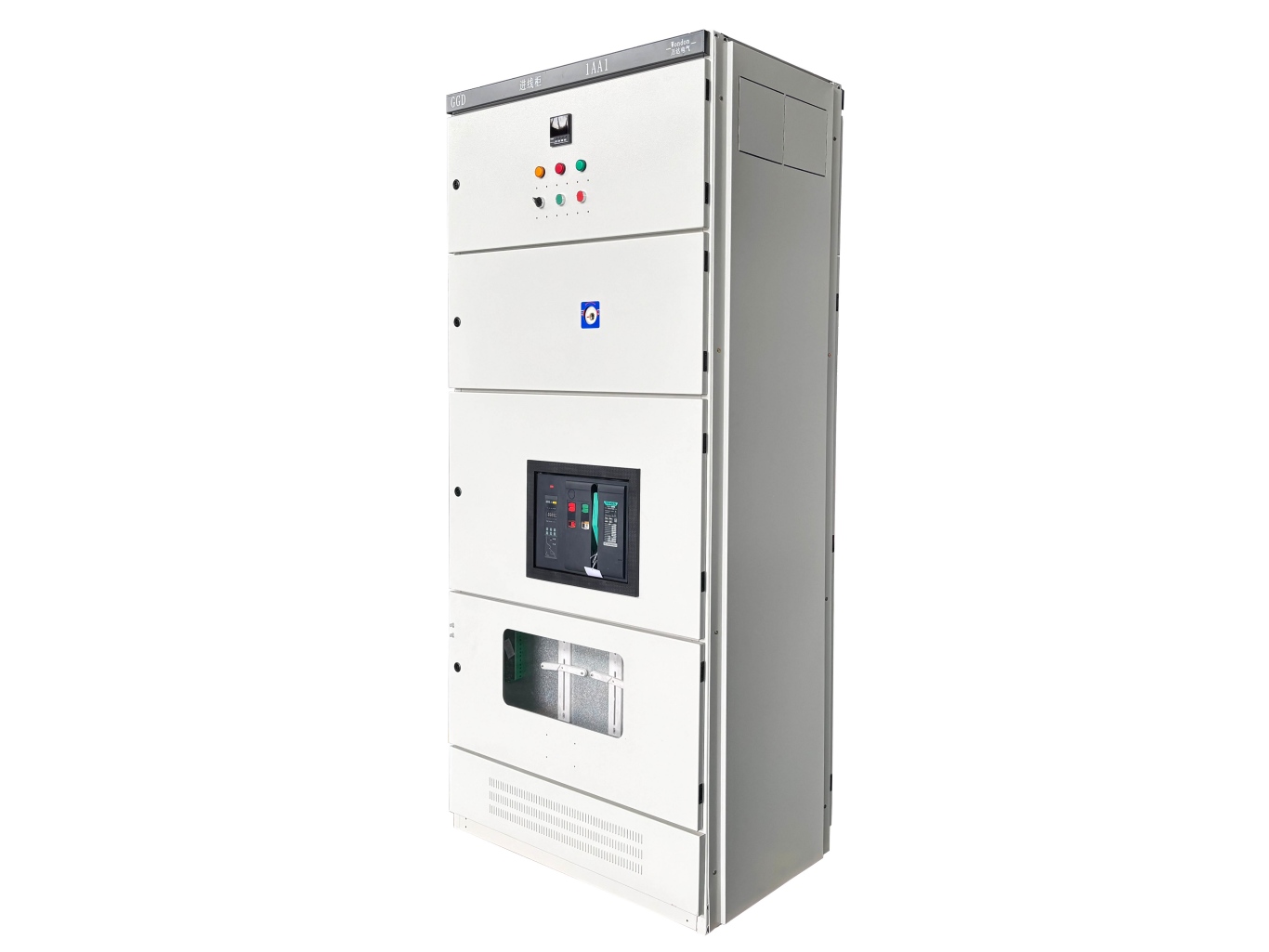

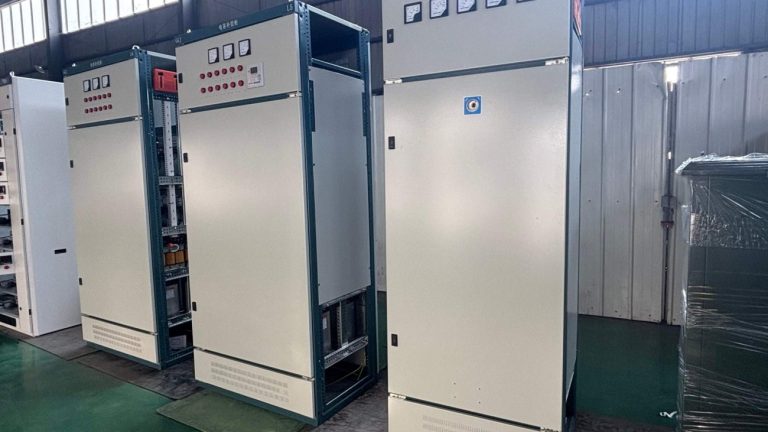

AC low voltage power distribution panels

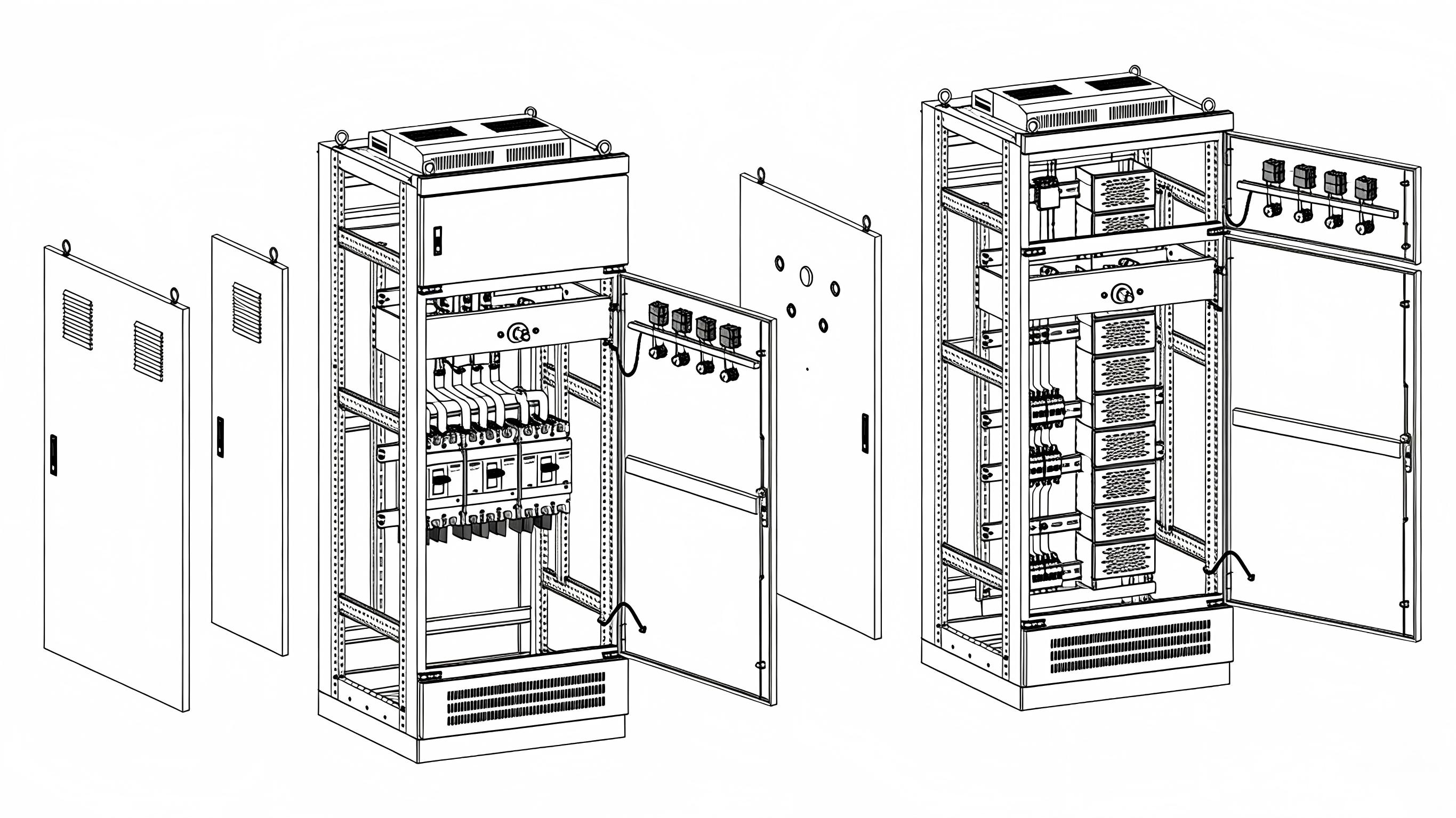

Low Voltage Switchgear Design & Customization Options
We provide flexible and modular design solutions tailored to different project requirements, ensuring optimal performance and installation efficiency.
Modular Switchgear Design
Allows flexible expansion and easy system upgrades.
Indoor and Outdoor Configurations
Designed for different environmental and installation conditions.
Compact and Space-Saving Design
Optimized structure reduces installation footprint and improves layout efficiency.
Custom Electrical Configuration
- Busbar layout customization
- Protection device selection (ACB, MCCB, MCB)
- Functional zoning design
How to Choose the Right Low Voltage Switchgear
Selecting the right switchgear is critical for ensuring system safety, efficiency, and long-term reliability.
- Load Capacity Requirements
Determine total system load and future expansion needs.
- Fault Level Consideration
Select appropriate short-circuit breaking capacity for system protection.
- Installation Environment
Indoor, outdoor, humidity, temperature, and corrosion conditions.
- System Expansion Requirements
Evaluate modularity and scalability for future upgrades.
Why Choose Wondon Low Voltage Switchgear
Years of Manufacturing Experience
Custom Engineering
In-house Engineering Team
Strict Quality Control
Global Export Projects
Fast Lead Time
Technical Specifications of Low Voltage Switchgear
Our low voltage switchgear is engineered in compliance with international standards to ensure high performance, safety, and durability under demanding conditions.
Electrical Ratings
- Rated voltage: up to 1000V
- Rated current: up to 6300A (customizable)
- Short-circuit withstand capability: high fault level resistance
Protection Level & Safety Design
- IP protection rating for dust and water resistance
- Arc fault protection design
- Insulated busbar system for operator safety
Standards Compliance
- IEC compliant design
- International safety certification support
Applications of Low Voltage Switchgear
Project References & Global Applications
“The low voltage switchgear we purchased from Wondon has improved the safety and efficiency of our electrical distribution system. Installation was smooth, and the team provided excellent technical support.”
“We needed custom LV switchgear for our industrial facility, and Wondon delivered exactly what we required. The build quality is excellent, and performance has been reliable under continuous load.”
“Working with Wondon was a great experience. The LV switchgear is robust, easy to integrate, and their team supported us throughout the installation and commissioning process.”
FAQs about Low Voltage Switchgear
1. What is low voltage switchgear?
Low voltage switchgear is an assembly used to control, protect, and distribute low-voltage power, typically for systems with rated voltage ≤1000V.
2. Why do we need low voltage switchgear?
It provides centralized power management, protects circuits and equipment, improves reliability, and isolates faults quickly.
3.How do I choose the right LV switchgear for our plant or building?
Consider load capacity, voltage rating, equipment type, short-circuit current, environmental conditions, scalability, and safety requirements.
4. What are the main components of LV switchgear?
Key components include circuit breakers, contactors, relays, busbars, fuses, protection devices, and control meters.
5. What environmental conditions can LV switchgear withstand?
They can be designed for indoor or outdoor use, withstanding high temperature, humidity, dust, or corrosive environments, typically rated by IP or NEMA standards.
