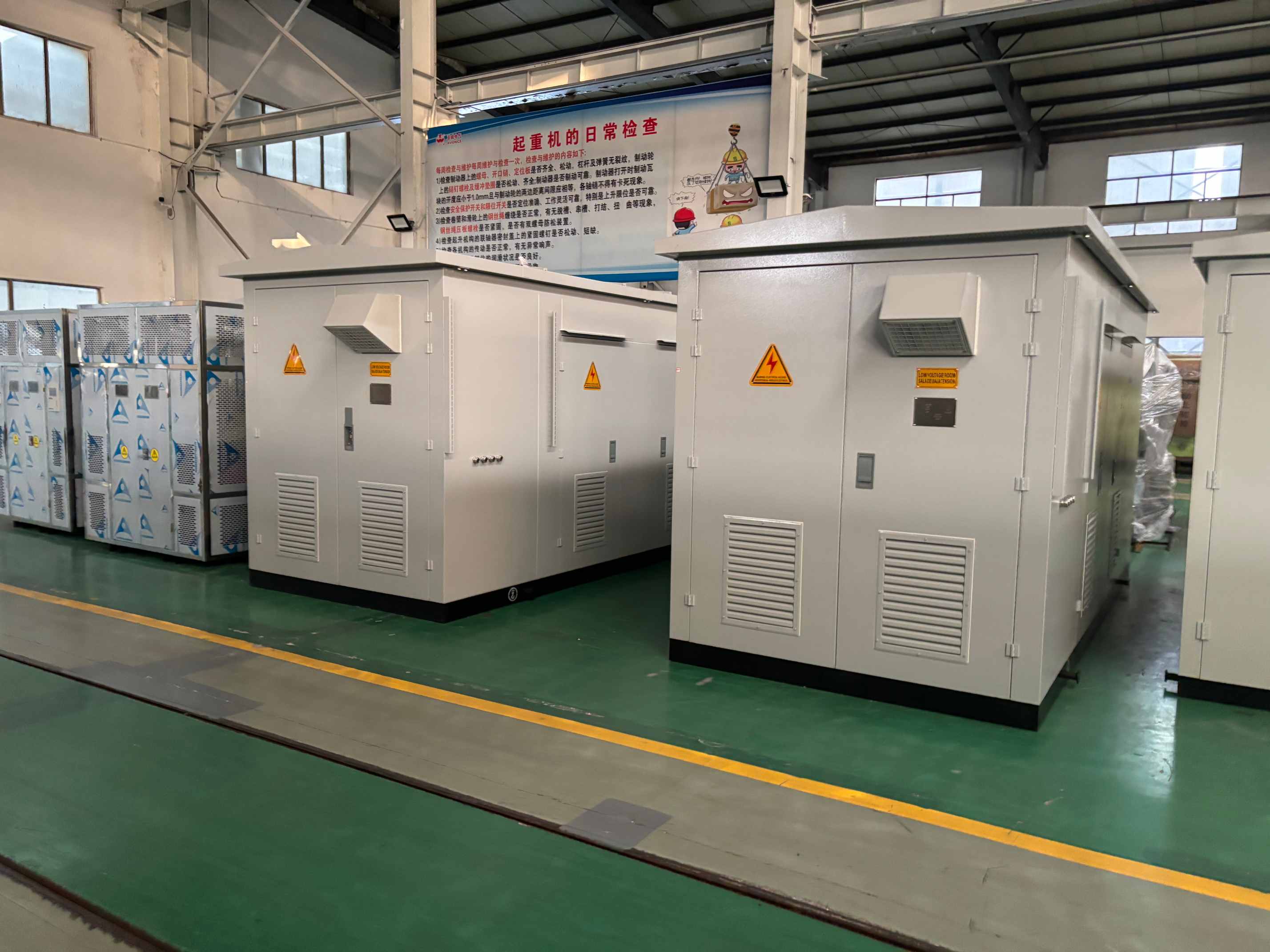

Prefabricated Substations are factory-assembled, modular electrical substation units designed for medium- or low-voltage distribution systems. They integrate transformers, switchgear, protection devices, measurement and control instruments, and auxiliary equipment into one or more modular units. Fully assembled and tested in the factory before delivery, these substations enable faster on-site installation while enhancing system safety, reliability, and operational efficiency.
Our Prefabricated Substation Types

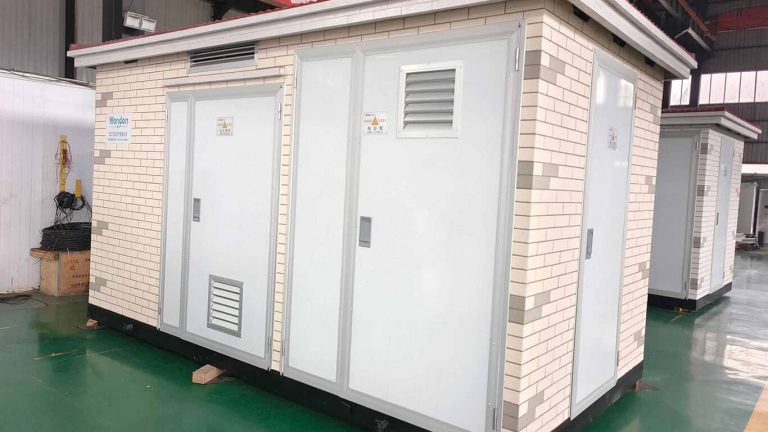

Compact Prefabricated Substation

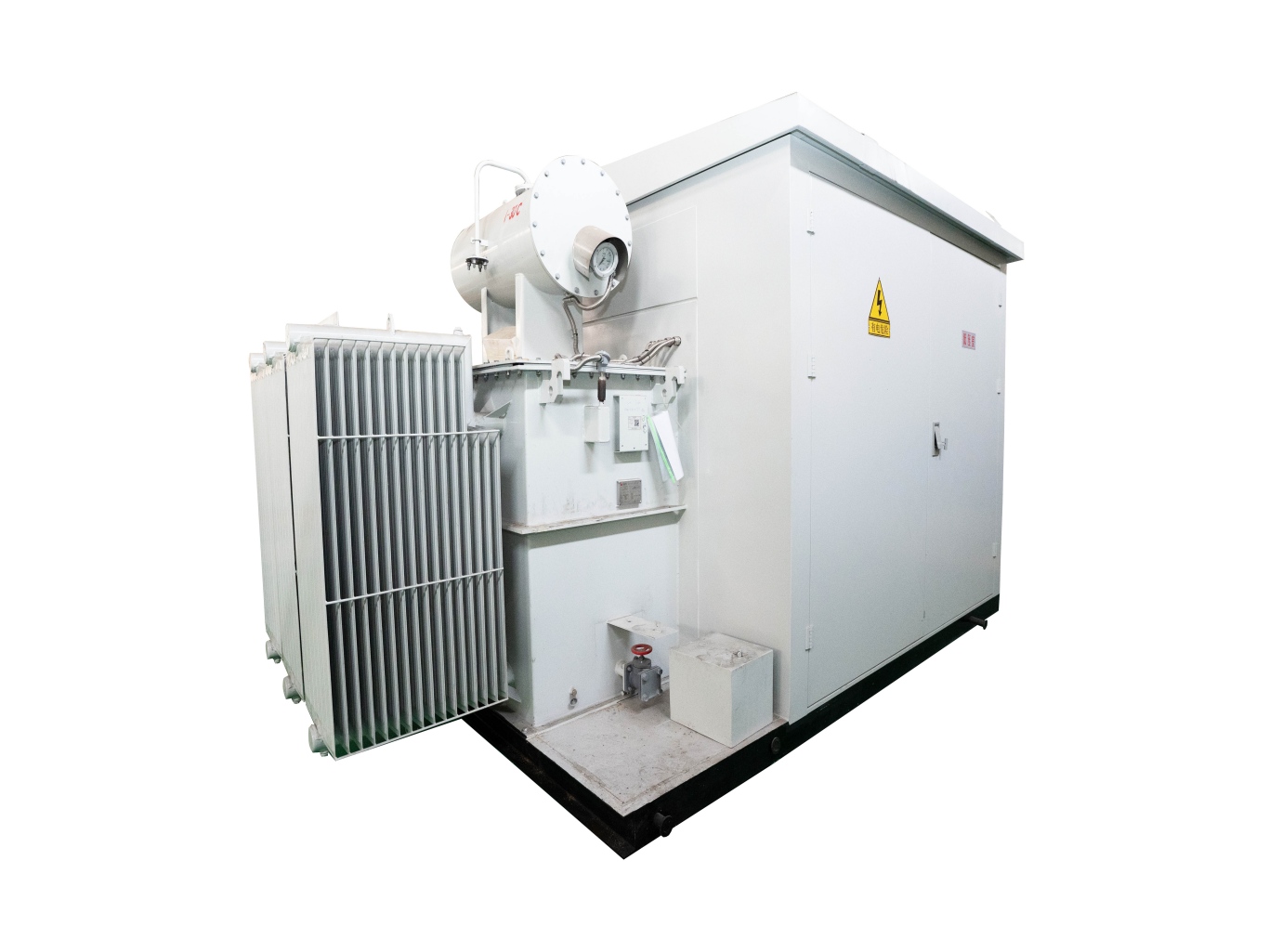

solar prefabricated substations
Prefabricated Substation Design & Engineering
Our engineering approach focuses on modularity, safety, and efficiency.
Modular Factory-Built Structure
All components are pre-installed and tested before delivery.
Optimized Electrical Layout
Compact arrangement of transformer and switchgear for maximum efficiency.
Climate-Resistant Design
- High temperature resistance
- Anti-corrosion coating
- Cold weather insulation
- Dust and moisture protection
How to Choose the Right Prefabricated Substation
Selecting the right solution depends on project requirements and operating conditions.
- Voltage and Capacity Requirements
Define system voltage level and load demand.
- Application Scenario
Urban, industrial, infrastructure, or renewable energy projects.
- Installation Environment
Indoor, outdoor, coastal, desert, or extreme climate conditions.
- Mobility Requirements
Fixed installation or containerized transportable solution.
- System Integration Needs
SCADA, automation, and smart grid compatibility.
Why Choose Our Prefabricated Substations
Years of Manufacturing Experience
Custom Engineering
In-house Engineering Team
Strict Quality Control
Global Export Projects
Fast Lead Time
Technical Features of Prefabricated Substations
Our prefabricated substations are engineered for high performance, safety, and long-term stability.

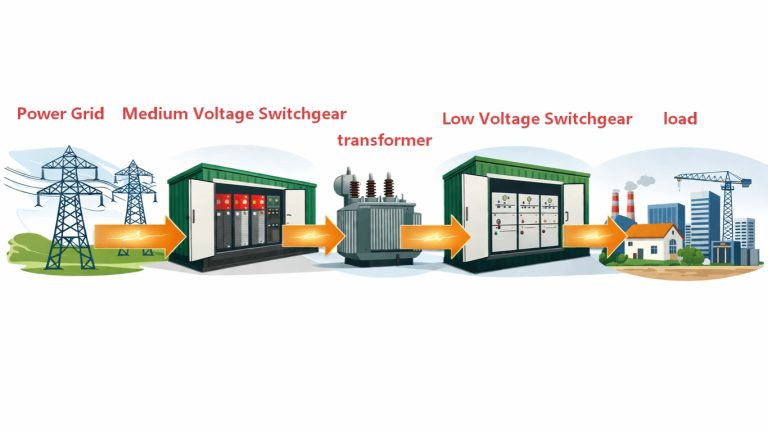

Integrated Power System Design
- Power transformer
- MV switchgear
- LV switchgear
- Protection and control system
Electrical Performance Range
- Voltage level: up to 220kV (customizable)
- Transformer capacity: up to 63MVA+
- Frequency: 50/60Hz
Protection & Monitoring System
- Overload protection
- Short circuit protection
- Temperature monitoring
- Smart relay protection system
Applications of Prefabricated Substations
Project References & Global Applications
“We chose Wondon for their expertise in pre-assembled substations. The modular design simplified installation and significantly reduced project time.”
“We were impressed with the pre-assembled substation’s quality and precision. Delivery, installation, and commissioning were smooth and well-coordinated.”
“Using a prefabricated substation allowed us to save weeks on construction time. The system is reliable, easy to maintain, and fully meets our operational needs.”
FAQs about Prefabricated Substations
1. What is a prefabricated substation?
A prefabricated substation is a factory-prefabricated and site-deployable substation that integrates high-voltage switchgear, transformers, low-voltage distribution, and monitoring systems.
2. What are the main components of a prefabricated substation?
Medium-voltage switchgear, transformer (dry-type or oil-immersed), low-voltage switchgear, protection and automation systems, and metering/monitoring/communication devices.
3. What are the advantages of prefabricated substations?
Factory prefabrication shortens installation time, compact structure saves space, high reliability with controlled quality, easy transportation and maintenance, suitable for indoor and outdoor installation.
4. Where are prefabricated substations commonly used?
Used in industrial parks, commercial complexes, residential areas, mines, wind/solar farms, and municipal infrastructure requiring rapid deployment.
5. Can prefabricated substations be customized?
Yes. They can be customized for voltage rating, current rating, transformer type, protection level, smart features, and site conditions.
