Our VFD Control Panel Types

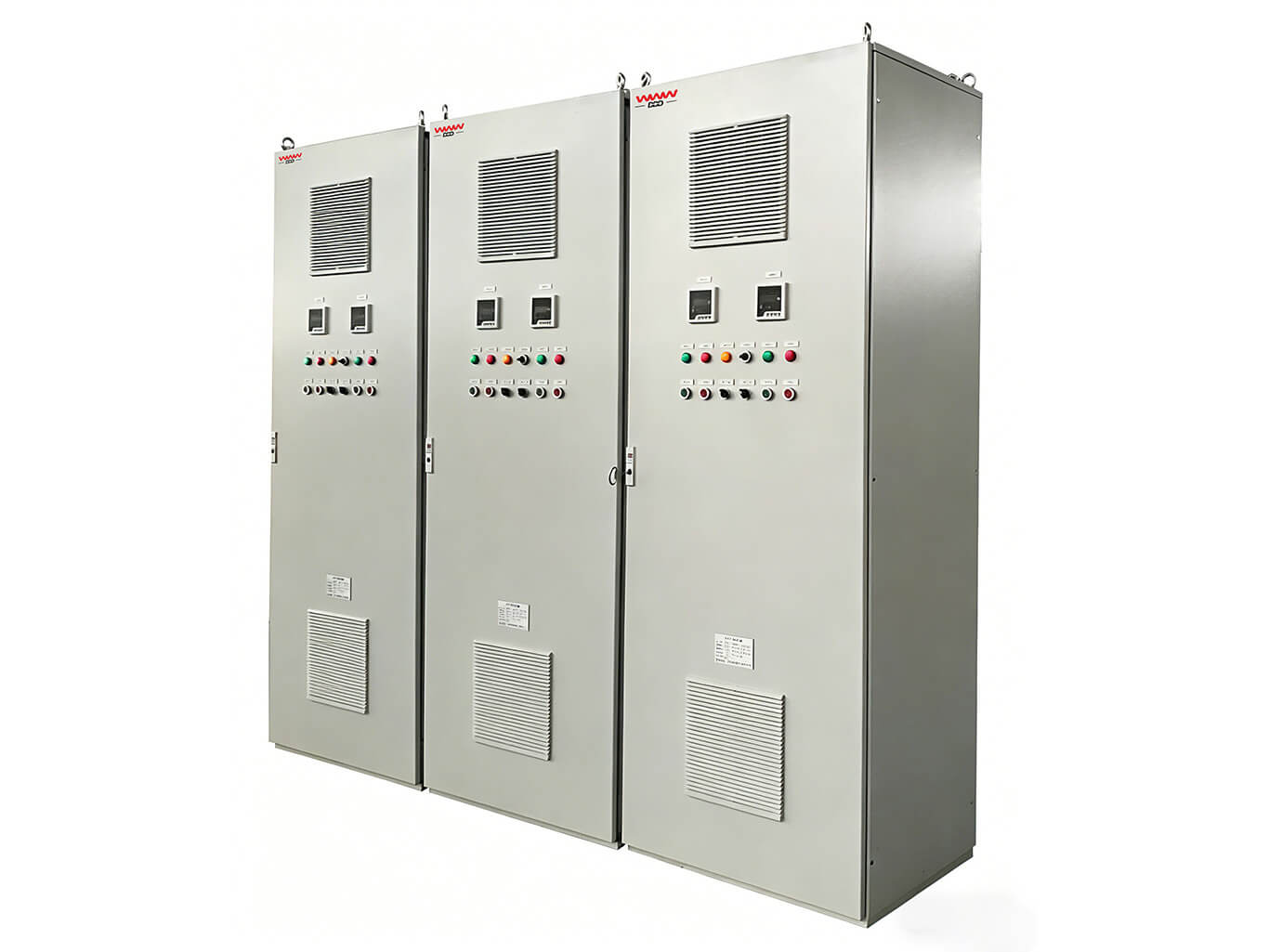

VFD Conveyor Control Panels
VFD Control Panel Design & Customization
We provide flexible and application-specific VFD control panel designs to meet diverse industrial requirements.
Energy-Saving Optimization Design
Automatically adjusts motor speed based on load demand to reduce energy consumption.
PLC & SCADA Integration
Supports full integration with industrial automation and monitoring systems.
Multi-Application Motor Control
Suitable for pumps, fans, conveyors, compressors, and HVAC systems.
Customized Electrical Configuration
- Drive selection (single or multiple VFDs)
- Control logic programming
- Protection and safety system design
How to Choose the Right VFD Control Panel
Selecting the right VFD panel ensures optimal motor performance and energy efficiency.
- Motor Power Rating
Choose based on motor kW/HP requirements.
- Load Characteristics
Constant torque (conveyors) vs variable torque (fans, pumps).
- Control Requirements
Basic speed control vs advanced automation and PID control.
- Environmental Conditions
Temperature, humidity, dust, and installation environment.
- Integration Requirements
Compatibility with PLC, SCADA, or building automation systems.
Factory Strength & Manufacturing Capabilities
Years of Manufacturing Experience
Custom Engineering
In-house Engineering Team
Strict Quality Control
Global Export Projects
Fast Lead Time
Technical Specifications of VFD Control Panels
Our VFD control panels are designed for high efficiency, stable performance, and precise motor control.
Electrical Ratings
- Rated voltage: 380V / 415V / 690V
- Power range: 0.75kW to 1000kW+
- Frequency range: 0–50/60Hz (adjustable output)
Control Performance Features
- Variable speed control
- Soft start and soft stop functionality
- Torque control mode
- PID process control
Protection Functions
- Overvoltage and undervoltage protection
- Overload and overcurrent protection
- Phase loss protection
- Overheating protection
Applications of VFD Control Panels
Project References & Global Applications
“The VFD control panels from Wondon have dramatically improved our motor efficiency. They are robust, easy to integrate, and the team provided excellent support throughout the project.”
“We needed custom VFD panels for our production line, and Wondon delivered exactly what we required. The installation was smooth, and the performance exceeded our expectations.”
“From design to delivery, working with Wondon was seamless. The VFD control panels operate flawlessly and have improved the reliability of our motors.”
FAQs about VFD Control Panels
1. What is a VFD Control Panel?
A VFD Control Panel is an electrical system designed to house and control Variable Frequency Drives, providing speed control and protection for motors.
2. What are the main components of a VFD Control Panel?
Typically includes VFD units, circuit breakers, contactors, overload relays, fuses, control switches, and monitoring meters.
3. What are the benefits of using a VFD Control Panel?
It provides energy savings, precise motor speed control, reduced mechanical stress, and enhanced process efficiency.
4. In which applications are VFD Control Panels commonly used?
They are used in pumps, fans, conveyors, HVAC systems, water treatment plants, and industrial machinery.
5. Can VFD Control Panels be customized?
Yes, panels can be tailored for motor type, voltage, current, number of drives, and specific control features.
