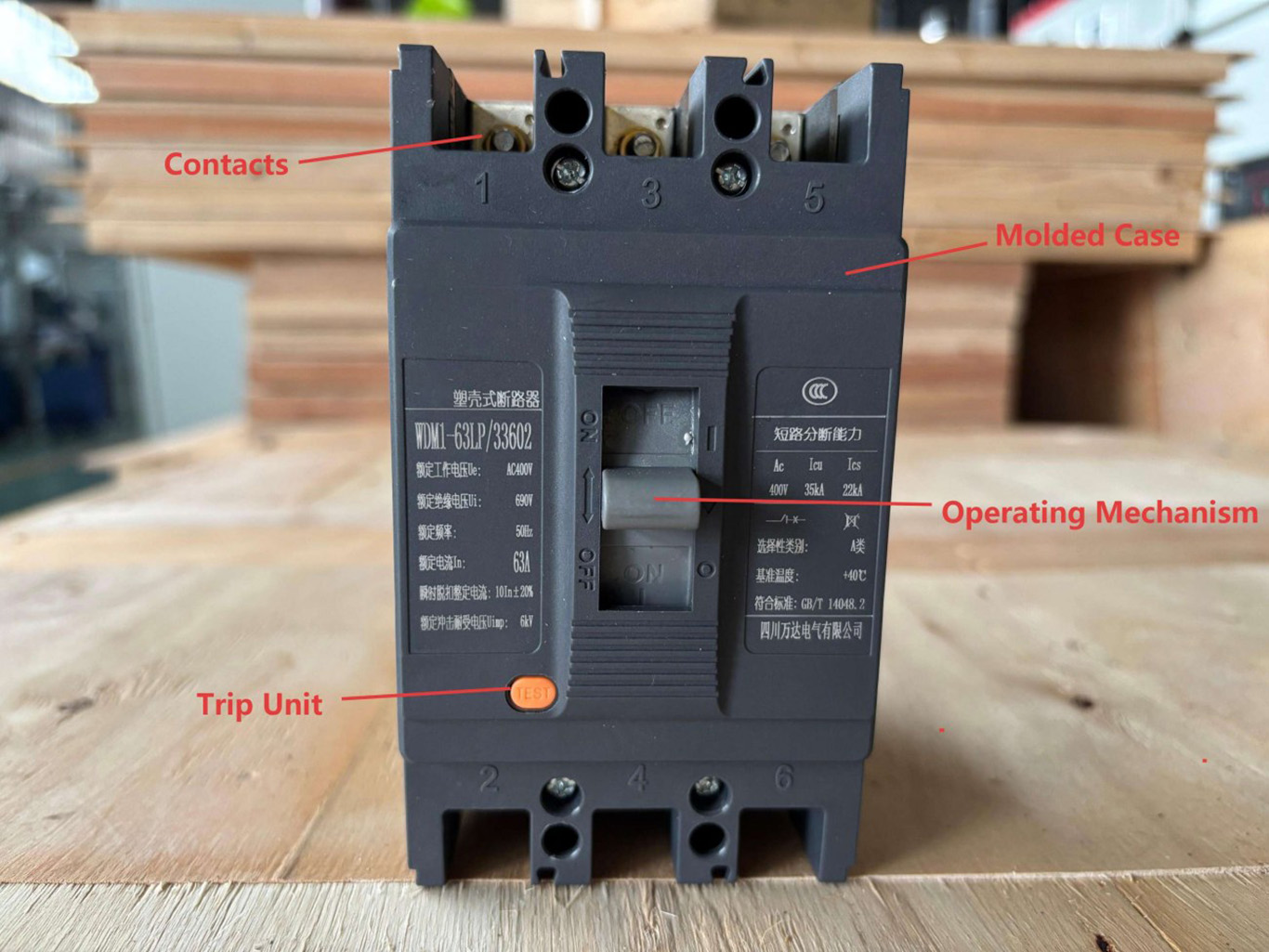

The MCCB is like a precisely designed machine, with each component performing its specific function and working together to build a safety barrier for the circuit. Understanding its basic components makes it easy to understand how it achieves precise protection.
1. Molded Case
Tightly encases all internal components, isolating them from external dust, moisture, and physical impact; it possesses excellent electrical insulation properties, effectively isolating high voltage and ensuring the safety of equipment and operators.
2. Contacts
Under normal operation, the contacts are tightly closed, ensuring smooth current flow to power the equipment; when a fault occurs, and power disconnection is required, the contacts quickly separate, instantly cutting off the current path.
3. Arc Chute
When the contacts separate, a strong electric arc is generated. The arc extinguishing chamber is specifically designed to suppress this arc. It can quickly capture and extinguish the arc, preventing the arc from burning the contacts or causing other dangers, ensuring a safe and thorough power disconnection process.
4. Trip Unit
Responsible for constantly monitoring the current status of the circuit. Once an overload, short circuit, or other abnormal condition is detected, it will immediately issue a command to trigger subsequent mechanisms, achieving power outage protection.
5. Operating Mechanism
It supports manual closing and opening of the circuit breaker, facilitating maintenance and testing; it also receives commands from the trip unit and automatically completes the tripping action, ensuring rapid and reliable power disconnection in the event of a fault. This mechanism is widely used in systems such as ATS control panels and power distribution panels, where operational reliability is essential.
