The power distribution system of a data center plays a critical role in ensuring operational stability, efficiency, and uptime. A well-designed system minimizes risks, supports future scalability, and guarantees continuous power supply for mission-critical operations. Proper planning before project implementation is essential.
1. Data Center Power Distribution System Architecture
A typical electrical distribution structure includes:

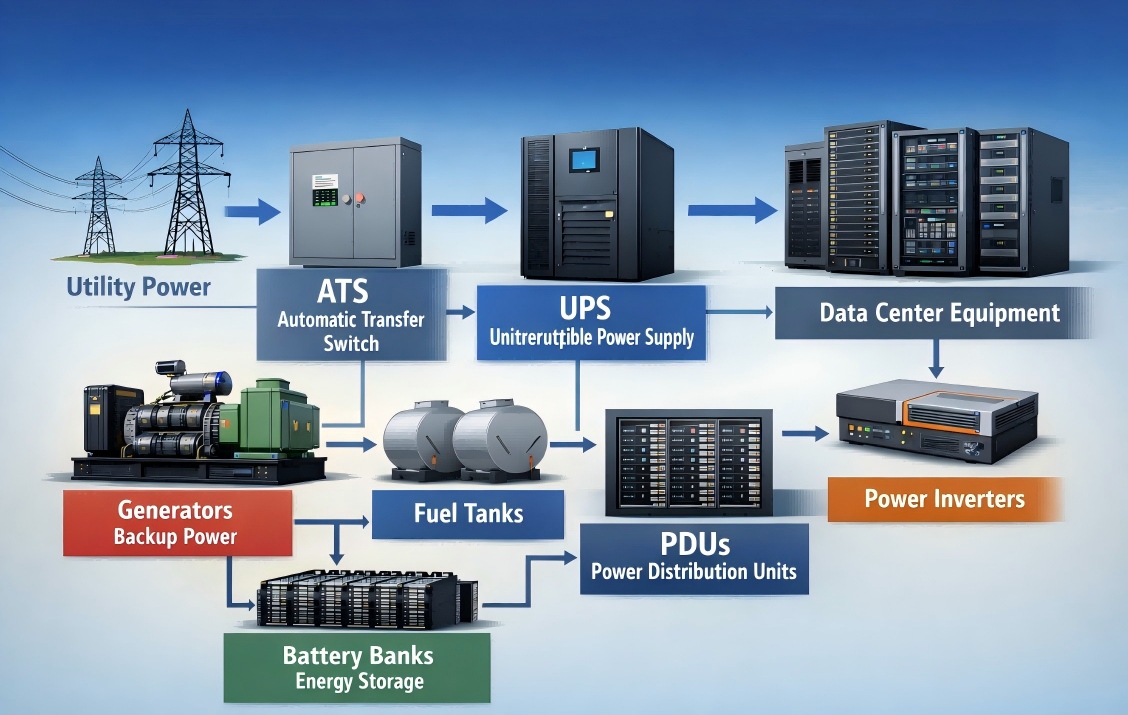

Mains Power → UPS → Power Distribution System → IT Load
High reliability must be ensured at each power distribution stage.
2. Redundancy Design: N+1 vs 2N
Redundancy is key to ensuring uninterrupted operation:
- N+1 Redundancy: Adds one backup component to support the system in case of failure.
- 2N Redundancy: Provides a fully duplicated system for maximum reliability.
Choosing between N+1 and 2N depends on the criticality of your data center and budget considerations. For high-availability environments, 2N is often preferred.
3. Data Center Power Distribution System Key Equipment
●Low voltage switchgear: Stable power distribution
●UPS: Backup power
●ATS: Automatic transfer switch
●Busbar trunking: Efficient power transmission
4. Common Design Mistakes
●Single point of failure
●Underestimating load growth
●Poor system integration
